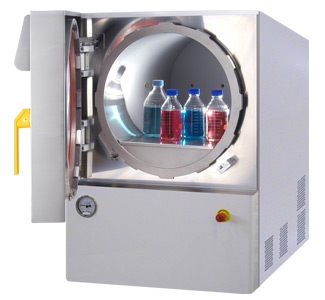

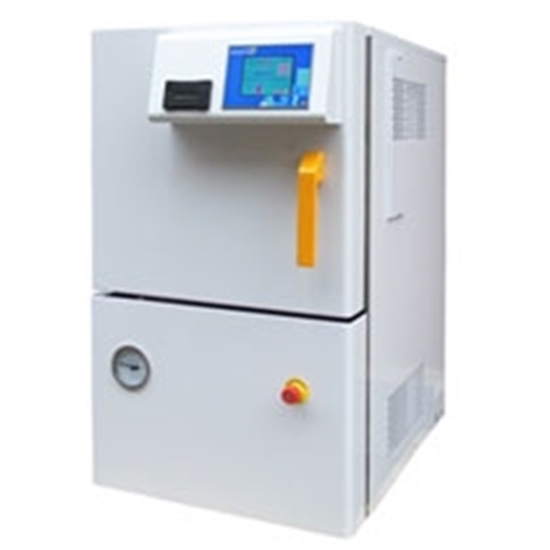

USB270BT ASTELL Swiftlock Front Loading Autoclaves

5.7” Full Colour Touchscreen
PLC Controller
Drain Valve
Data Archive
Timed (Delayed) Start
Swiftlock Closure
Electro-Polished Chamber
Validation Port
Media Holdwarm
Internal Base Shelf
Cooling Lock
Over-Temperature Protection
Safety Valve Test Program
Pressure Gauge
5 Password Levels
Multi Program
Emergency Stop
Timed/Pulsed Free Steaming
Optional Single or 3 Phase Power requirement (on 120 & 133L models)

Electrically Heated Models (in-vessel or steam generator)
Power: 3-Phase 380-440 volts (Phase-Phase), 50 or 60 Hz. 10kW models may be operated at 7kW from a Single Phase 30 Amp 200-240 Volt supply. For use on 3-Phase Power Supplies of 200-240volts (Phase-Phase) please specify option AAN110 at time of order. NB. A Neutral Line and Protective Earth are required for all electrically heated units.
Water: A cold water supply of 2 to 6 bar minimum, 4 L/min is required for the Autofill or Water Cooling (including Deluge Cooling) options. Max Temp. 25oC, Max flow rate 20L/Min.

All Models
Drain: Free-venting, non-manifolded drain (35mm dia) capable of withstanding temperatures up to 100oC.

Fedex Freight Shipping Required
