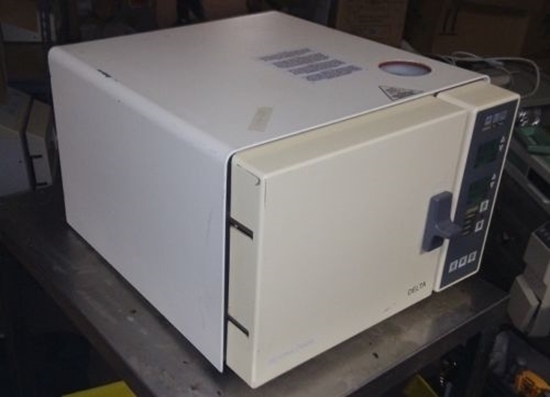

Delta 8 Pelton Crane Sterilizer Refurbished

Pelton Crane Delta 8 Sterilizer Refurbished
Availability: 1 in stock
SKU: Y-Delta-8-R
Call for pricing

Pelton Crane Delta 8 Sterilizer Refurbished

Specifications (both Delta 8 and Delta 10, please check for Delta 10)

Exterior Dimensions
8” Model-
12 1/4” high x 20 1/4” deep x 17 1/2” wide
(31.1 cm high x 51.4 cm deep x 44.5 cm wide)
10” Model-
14” high x 24 5/8” deep x 19 1/4” wide
(35.6 cm high x 62.5 cm deep x 48.9 cm wide)
Chamber Dimensions
8” Model-
8 7/32” inside diameter x 14” useable depth
(21 cm inside diameter x 35.6 cm deep)
10” Model-
9 7/8” inside diameter x 17 7/16” useable depth
(25.1 cm inside diameter x 44.3 cm deep)
Weight Without Water in Reservoir
8” Model-
61 lbs. (28 kg)
10” Model-
84 lbs. (38 kg)
Measurement Accuracy
Pressure: +/- 8 kPa (1.16 PSI or .08 bars)
Temperature: +/- 3.6° F (2° C)
Time: +/- 1 second
Power Supply
Both Models-
110 - 120 Volts, 50/60 Hz or
220 - 240 Volts, 50/60 Hz
Nominal Current Consumption
8” Model-
12 Amperes @115 Volts
6 Amperes @230 Volts
10” Model-
10 Amperes @115 Volts
8 Amperes @230 Volts
Environmental and Storage Limitations
Both Models-
Optimum Operating Temperature Range:
50°F to 104°F
(10°C to 40°C)
Relative Humidity Range:
30% to 75%
Unit is designed for normal dental/medical office environment.
NOTE: If printer is used, its operating temperature is 41°F
to 95°F (5°C to 35°C).
Mode of Operation:
Both Models- Continuous
NOTICE: Manufacturer will make available all information
which will assist the authorized service representative to
repair equipment. Calibration of the power board is to be
done only at the factory.

Products specifications
Sterilizer Type Automatic Sterilizer
Sterilizer Power Voltage 120V Single Phase
Dry Mode Yes
Loading Methods Front Load
Sterilizer Program Unwrapped, Wrapped, Packs, Liquids, Special (most Pelton & Crane automatic settings)
Sterilizer High Temperature 275F (134C)
Printer Option
Color Beige
Type of Heating Element External Heating Element
Sterilizer Speed Standard
Type of Door Hinge Door
Laboratory Customer Yes
Industry Customer Yes
Government Customer Yes
Tattoo, Beauty Salon Customer Yes
Medical Doctor Yes
Dentist Customer Yes
FDA Certificate Yes
ASME Certificate Yes
CE Certificate Yes
Warranty Parts and Labor 90 days
Sterilizer Door Size 8 inches
Sterilizer Chamber Depth 15 inches
Sterilzier Power Current 15A
